Vacuum casting crafts precise prototypes or small product batches by injecting liquid resin into silicone molds under vacuum pressure. This eliminates air bubbles, ensuring flawless surfaces and the exact replication of intricate designs. The cured parts mimic industrial plastics and elastomers, suitable for functional testing or final use, all without costly molds.
Ideal for startups and established industries (automotive, medical, consumer goods), it accelerates product development. Need 10 prototypes or 100 units? This method delivers in days, not months, slashing time-to-market. Affordable, adaptable, and detail-oriented, vacuum casting from LTC Proto bridges innovation and production, empowering businesses to test, refine, and launch with confidence.
What is Vacuum Casting?
Vacuum casting is a production process for making a small number of high-quality prototypes or end-use parts. Vacuum casting uses silicone molds and liquid resins. Replicating a master model under vacuum pressure, it eliminates air bubbles and achieves surface finishes comparable to injection-molded parts, thus making it very suitable for projects that require accuracy and speed at a cost-efficient level for anything from 10 to 50 units.
Here’s How It Works:
- Master Model Creation: Begin with a 3D-printed or CNC-machined master (your “original” part).
- Silicone Mold Making: Suspend the master in a frame, pour liquid silicone around it (think industrial Jell-O!), cure, slice open, and remove the master.
- Vacuum Casting: Pour resin (rigid, rubber-like, or transparent) into the mold, then vacuum-seal to eliminate all air bubbles for flawless surfaces.
- Cure & Repeat: Bake to cure, demold the part, and reuse the mold for 20–30 high-fidelity copies.
Pros and Cons of Vacuum Casting
Here are some pros and cons of vacuum casting you should keep in mind
| Pros of Vacuum Casting | Cons of Vacuum Casting |
Pros
|
|
Who Should Use It (and Who Should Skip It)
Vacuum casting is a game-changer for:
- Prototypes need a real product feel for user testing.
- Small batches (10-100 units) of consumer products, medical devices, or automotive components.
- Designs with complex geometries that machining can’t handle affordably.
Avoid it if:
- You need thousands of units (injection molding wins).
- Your body faces extreme heat, pressure, or wear.
- You’re on a shoestring budget for a single prototype (3D printing is cheaper).
Vacuum casting isn’t magic; it’s a tool. But when used strategically, it slashes costs, speeds up R&D, and turns concepts into tangible, market-ready parts. And if you’re debating whether it fits your project, LTC Proto’s experts can help troubleshoot material choices or optimize surface finishes.

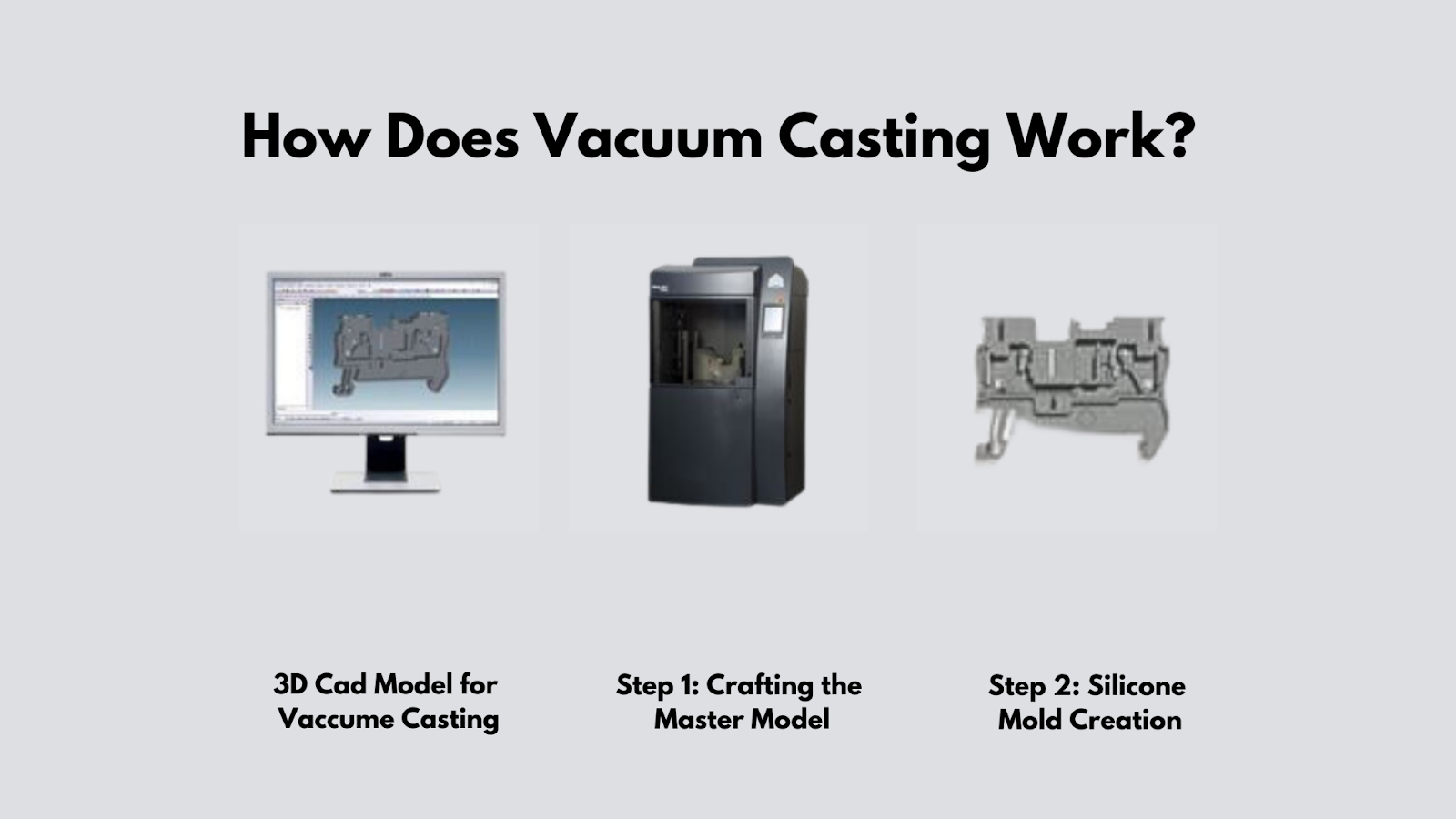

How Does Vacuum Casting Work?
Vacuum casting bridges artistry and engineering, transforming digital designs into tactile, functional parts. Here’s a no-nonsense walkthrough of the process.
Step 1: Crafting the Master Model
Every vacuum-cast part begins with a master, a flawless prototype of your design. This model is typically 3D-printed using high-resolution SLA technology or CNC-machined for precision. Surface imperfections matter here; any flaw on the master will replicate across all copies, so it’s polished to a near-mirror finish.
Step 2: Silicone Mold Creation
The master is suspended in a steel frame, and liquid silicone rubber (LSR) is poured around it. Imagine embedding a delicate object in gelatin, except this silicone cures into a durable, flexible mold. After curing (usually 6-12 hours), the mold is carefully sliced open, the master is removed, and what remains is a cavity perfectly mirroring your design.

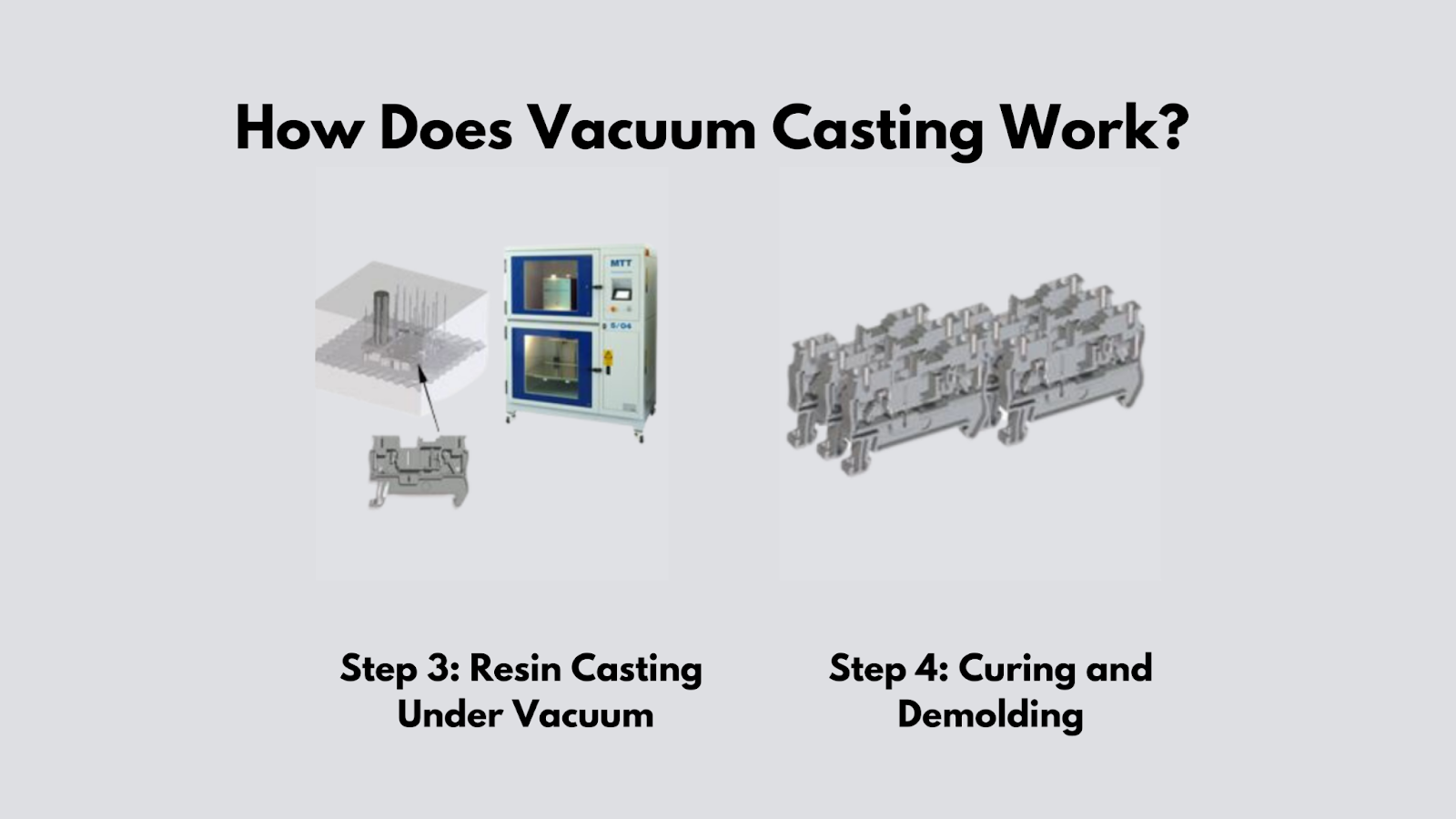

Step 3: Resin Casting Under Vacuum
Liquid polyurethane resin, selected for rigidity, flexibility, or transparency, is poured into the silicone mold. The entire assembly is placed in a vacuum chamber, where suction evacuates trapped air. This step is critical: air bubbles can obscure fine details or weaken the part. The vacuum ensures that the resin flows into even micron-scale features, like micro-textures or hollow channels.
Step 4: Curing and Demolding
The filled mold moves to an oven, where heat triggers the resin’s chemical hardening. Depending on the material, curing takes 1-4 hours. Once cooled, the mold is peeled open, revealing a finished part that’s functionally and visually identical to the master. A single silicone mold can produce 20-30 copies before losing fidelity.
Why Vacuum Casting Matters
Vacuum casting presents solutions to some predicaments that other methods fail to address. Engineers and designers, therefore, find it truly essential.
- Vacuum casting allows complex shapes and undercuts that no rigid metal mold can ever handle.
- Silicone molds enable the reproduction of intricate details without hurting the piece during demolding.
- The method is perfect for prototype production of medical devices, snap-fit parts, and aero parts.
- It is better than machining, and it has better surface finishing than 3D printing.
- Provides high-precision copies in a quick manner for testing and feedback.
Choosing the Right Materials for Vacuum Casting
| Material Type | Best For | Key Traits and Limits |
| Glass-Filled Polyurethane | Structural enclosures, robust housings | High rigidity, durable, may fracture under extreme flexure |
| Soft Elastomer (Shore 30A-90A) | Ergonomic grips, seals, and flexible parts | Excellent flexibility, tactile, vulnerable to tearing under significant stress |
| Transparent Polyurethane | Light guides, lenses, and display covers | Superior clarity, light transmission; prone to scratching without coatings |
| Flame-Retardant Polyurethane | Electronic enclosures, safety-critical components | Fire-resistant, regulatory-compliant; higher cost, reduced elasticity |
| Standard Polyurethane | General prototypes, multipurpose parts | Versatile, smooth finish; limited to ~120°C thermal exposure |
Vacuum casting material selection is a big factor and backbone in any project. The table above presents the five principal types of polyurethanes (PU) with their strengths, ideal applications, and quirks.
Glass-Filled Polyurethane:
Best For: Structural enclosures, robust housings
What It’s All About:
This is the go-to when you need something tough: think protective shells for machinery or housings that keep delicate internals safe. The “glass-filled” part means it’s packed with tiny glass fibers, giving it a serious boost in stiffness and strength. It’s the kind of material that stands up to pressure and holds its shape, much like ABS in traditional manufacturing.
Why It Shines:
- Offers exceptional rigidity, perfect for parts that can’t afford to bend or wobble.
- Brings durability to the table, so it’s a solid pick for anything that’ll face wear and tear.
Where It Stumbles:
It’s not invincible. Push it too far with extreme flexing like twisting or bending beyond its limits, and it can crack. That brittleness under intense strain means it’s best for static, load-bearing roles rather than parts that need to flex repeatedly.
Soft Elastomer (Shore 30A-90A)
Best For: Grips, seals, flexible components
What It’s All About: Imagine a handle that feels good in your hand or a seal that hugs tight without breaking a sweat. That’s where soft elastomers come in. Rated from shore 30A to 90A (a scale of hardness), these resins range from super soft to moderately firm, mimicking rubber or silicone. They’re all about comfort and adaptability.
Why It Shines:
- Supple and pliable, making it ideal for parts that need to stretch or compress without losing their mojo.
- Tactile as heck, great for anything you’ll touch, like grips or buttons, where feel matters as much as function.
Where It Stumbles: It’s not built for brute force. Heavy mechanical loads like constant pulling or crushing can tear it apart. So, while it’s a champ at bending, don’t ask it to carry the weight of the world. Think light-duty flexibility, not heavy lifting.
Transparent Polyurethane: The Clear Visionary
Best For: Light guides, lenses, display covers
What It’s All About: This one’s the star of the show when you need see-through perfection. Whether it’s channeling light through a guide or protecting a display with crystal clarity, transparent PU is designed to let light play its part without distortion. It’s the optical ace in the deck.
Why It Shines:
- Crystal-clear finish that’s a dream for anything visual, think lenses or sleek covers that show off what’s underneath.
- Light-friendly, meaning it handles illumination like a pro, making it a favorite for designers working with optics.
Where It Stumbles: It’s a bit of a diva when it comes to surface wear. Without some extra protection like a coating, it scratches easily, dulling that pristine look. If it’s going to face rough handling or abrasive conditions, you’ll need to armor it up.
Flame-Retardant Polyurethane: The Safety Sentinel
Best For: Electronic enclosures, safety-critical parts
What It’s All About: When fire risk is on the line, this resin steps up. It is engineered to resist burning, meeting strict safety standards like UL ratings for things like electronic housings or components in high-stakes environments.
Why It Shines:
- Fire-safe to the core, giving peace of mind in applications where sparks or heat could spell trouble.
- Compliant with regulations, so it’s a no-brainer for industries like electronics where safety isn’t optional.
Where It Stumbles: You pay a premium for that protection, both in cost and flexibility. It’s stiffer than standard PU and less willing to bend, which can limit its use in designs needing elasticity.
Standard Polyurethane:
Best For: Versatile prototypes, general parts
What It’s All About: This is the jack-of-all-trades in the PU family. Not too specialized, it’s the resin you reach for when you need a solid, dependable performer for prototypes or everyday components. It has got a bit of everything: strength, smoothness, and adaptability.
Why It Shines:
- Well-rounded properties make it a safe bet for a wide range of projects, from mock-ups to functional pieces.
- Sleek finish right out of the mold, so it looks good without much fuss, perfect for quick-turnaround needs.
Where It Stumbles: Heat’s its kryptonite. It tops out around 120°C, so if your part’s destined for a scorching environment like near engines or an oven, it’ll soften or warp. It’s a champ for moderate conditions, but don’t test it in the furnace.

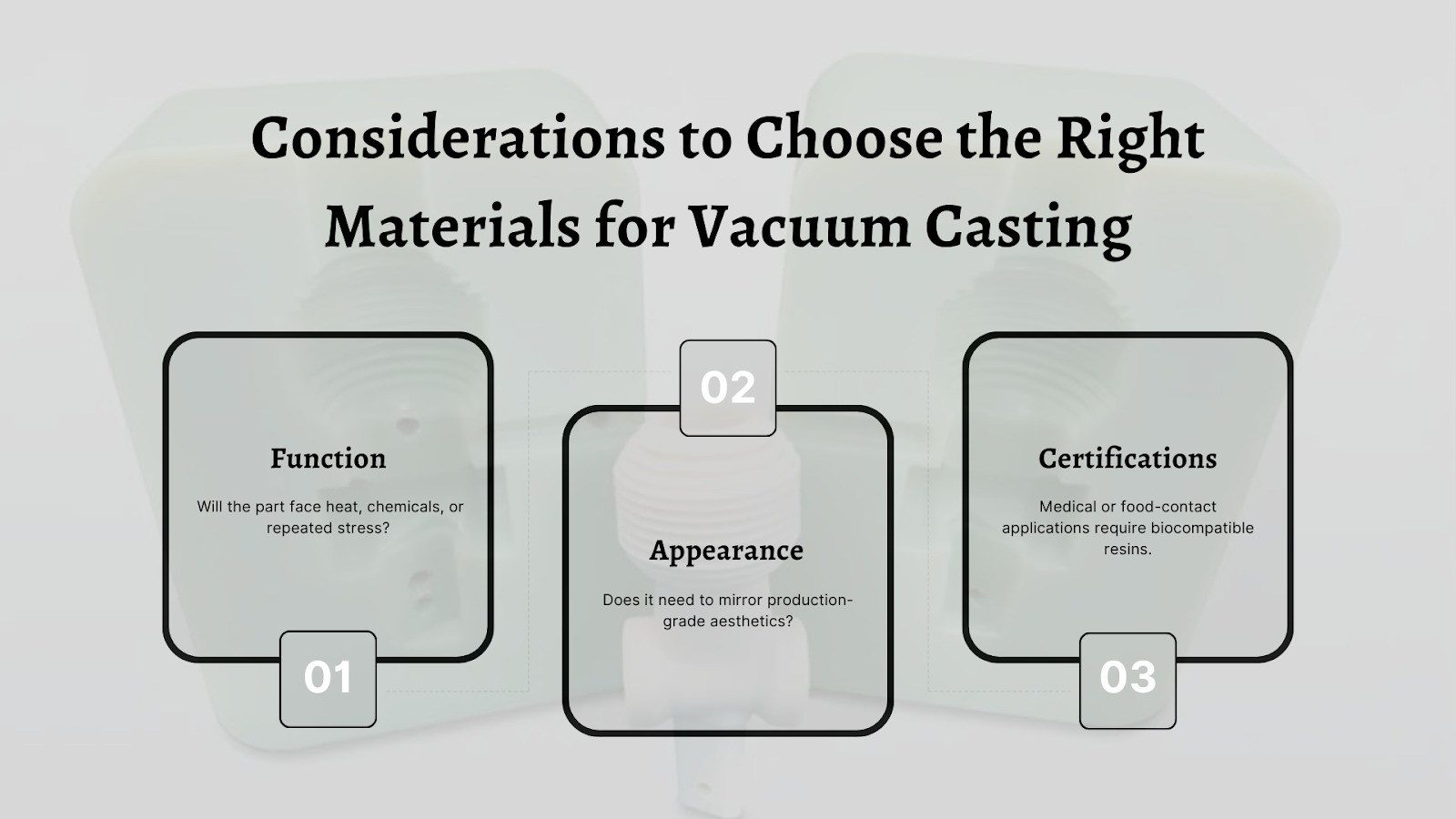

Key considerations:
- Function: Will the part face heat, chemicals, or repeated stress?
- Appearance: Does it need to mirror production-grade aesthetics?
- Certifications: Medical or food-contact applications require biocompatible resins.
For example, a drone shell might use standard PU for prototyping but switch to UV-stable resin with a protective coating for field testing.
Common Applications of Vacuum Casting
- Healthcare Tools: Vacuum casting shapes custom surgical tools and prosthetics that fit patients like a glove, think lightweight inhaler housings, sterilizable and ready in days, not months.
- Tech That Feels Right: It transforms clunky 3D-printed electronics into sleek, market-ready gems, ergonomic toothbrush grips or smartwatch casings with textures and snap-fits that click just so.
- Automotive Edge: Under-the-hood prototypes like sensor housings or dashboard parts get built tough for testing, dodging the hefty price of metal molds.
- Aerospace Precision: Lightweight housings mimicking carbon fiber’s strength roll out for preflight checks, proving their worth without weighing down the budget.
Summary
Need a vacuum casting service that doesn’t scream “rough draft”? Vacuum casting is your ace in the hole. It’s like that trusty multi-tool you keep handy: not ideal for everything, but when it works, it’s a lifesaver.
Silicone molds snag details that 3D printers miss, and resins play chameleon, stiff, stretchy, or clear as glass. Molds fade after 20-30 runs, and it’s not built for thousands, but for perfecting a design or dipping toes in the market. Nothing beats it.
FAQs
Is the vacuum casting process cheaper than 3D printing?
For single prototypes, 3D printing wins. But for 10+ units, vacuum casting’s per-part cost plummets.
Can it handle high-temperature materials?
Resins max out around 120°C. For engine parts or industrial use, metals or engineering thermoplastics are better bets.
How many copies can one mold make?
Silicone molds last 20-30 casts. Need more? LTC Proto can advise on material tweaks or alternative methods.
